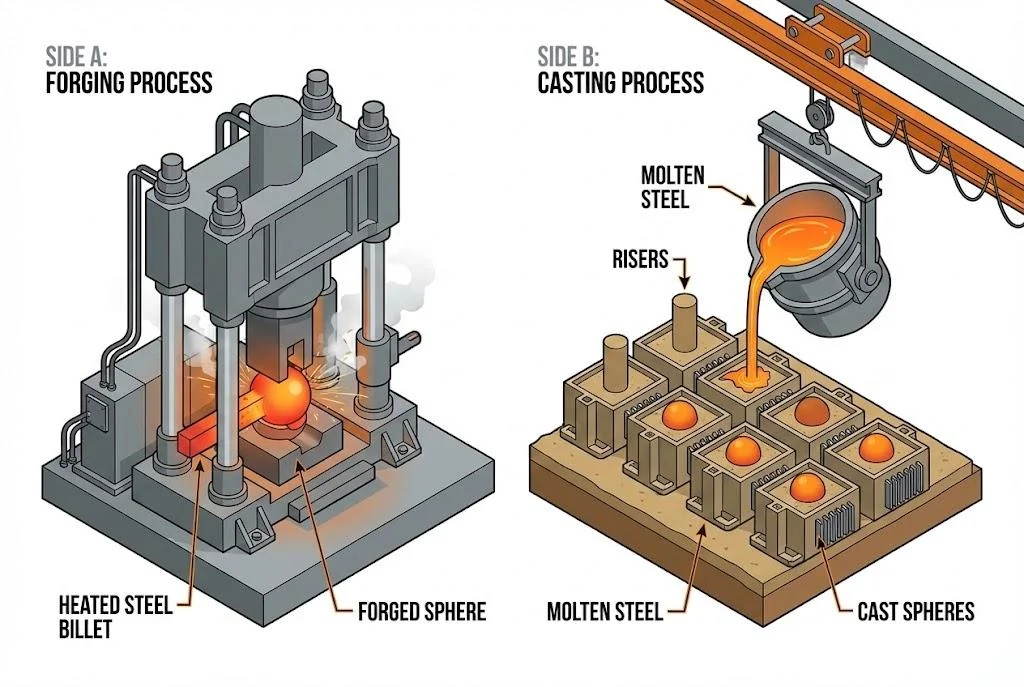

Understanding the Manufacturing Process Difference

Forged Steel Grinding Ball Production

Forged grinding balls undergo a multi-stage process that refines the steel's grain structure:

• Hot forging at 1050-1150°C: Steel billets are mechanically deformed under high pressure, eliminating porosity and aligning the grain flow

• Controlled cooling: Gradual temperature reduction prevents thermal stress cracks

• Heat treatment cycle: Quenching followed by tempering at 200-400°C to achieve target hardness

• Quality verification: Spectrometer analysis confirms alloy composition (Cr 0.8-1.2%, Mn 0.6-1.0%, Si 0.4-0.8%)

The forging process creates a uniform, dense microstructure with minimal inclusions. At Changzhou Eurasian, our CQI-9 certified heat treatment line ensures consistent hardness distribution throughout the ball volume.

Cast Steel Grinding Ball Production

Cast balls follow a simpler process:

• Molten steel pouring: Liquid steel poured into spherical molds at 1500-1600°C

• Natural cooling: Balls cool in molds without controlled temperature curves

• Surface hardening: Some manufacturers apply heat treatment only to the surface layer

While cast balls can be a cost-effective solution for smaller secondary mills, low-impact regrinding circuits, or budget-constrained short-term projects, the casting method typically results in non-uniform hardness distribution. Surface layers may reach HRC 58-62 while cores remain at HRC 40-45 (exact values depend on ball size and production process).

Note: Premium cast ball manufacturers employ post-casting heat treatment to improve through-hardness, partially mitigating this issue.

Critical Performance Metrics Comparison

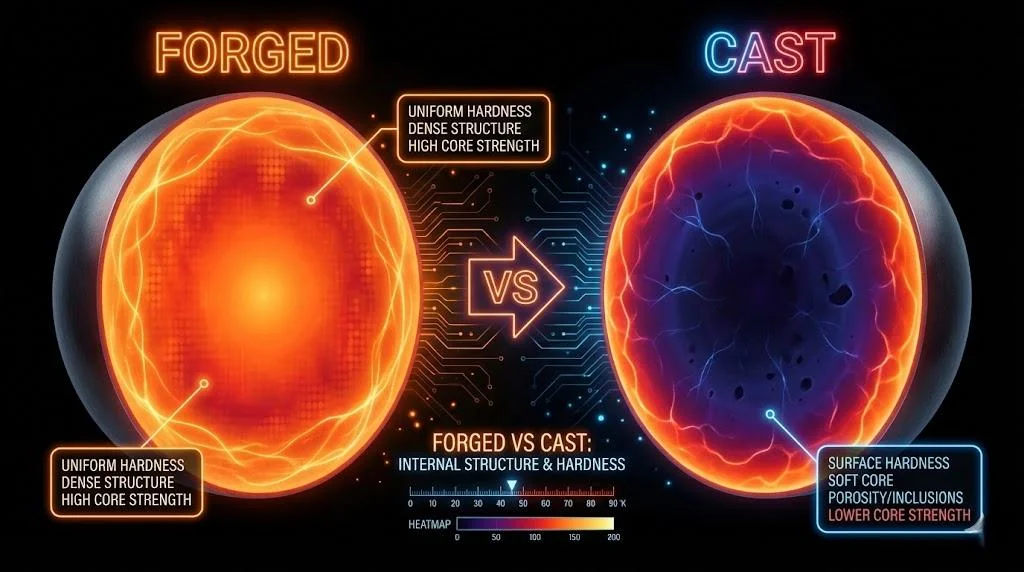

Hardness Distribution and Uniformity

Forged steel grinding balls:

• Surface hardness: HRC 58-65 (depending on alloy grade)

• Core hardness: Typically within 3-5 HRC of surface values

• Verification: Our Rockwell hardness tester samples multiple points across sections

Cast steel grinding balls:

• Surface hardness: HRC 58-62 (standard production)

• Core hardness: Often HRC 40-48 (varies by diameter and quality)

• Hardness differential: Commonly 10-20 HRC difference surface to core

Testing methodology note: These ranges reflect cross-sectional measurements on cut ball samples. Buyers should request batch-specific hardness traverse reports showing minimum 5-point measurements from surface to center.

Breakage Rate Analysis

Field observations from mining plants indicate substantial differences:

Cast Steel Balls (high-impact SAG mills):

• Observed breakage: 15-30% over 6-month periods (variable by mill type and conditions)

• Primary failure: Surface layer spalling and fracturing at stress concentration points

• Hidden cost: Broken fragments clog mill discharge screens

Forged Steel Balls (equivalent conditions):

• Observed breakage: Typically 3-8% over equivalent periods

• Failure mode: Predominantly gradual wear rather than sudden breakage

• Benefit: More predictable replacement schedules

Important context: Breakage rates depend heavily on mill parameters, ore characteristics, and ball size distribution. Figures above represent high-impact SAG applications processing hard rock ores (Mohs 6-7). Secondary mills show 50-70% lower breakage rates for both types. Establish site-specific baselines through trial periods before full commitment.

Wear Rate and Grinding Efficiency

Wear rate (grams per ton of ore processed) determines media lifespan:

Cast Steel Balls:

• Wear rate: 700-1,400 g/t (depends on ore hardness, mill type, ball quality)

• Effective grinding time: 4-6 months in hard rock primary grinding

• Replacement frequency: Typically 2-3 recharges annually

Forged Steel Balls:

• Wear rate: 450-750 g/t for comparable applications

• Effective grinding time: 8-14 months in similar applications

• Replacement frequency: Generally 1-2 recharges annually

Wear rate methodology: Total ball mass loss divided by tons ore processed during measurement period. Rates are highly site-specific, influenced by ore Mohs hardness, mill liner design, slurry chemistry (pH 4-10), and ball charge composition. Ranges cited reflect wet grinding of hard rock ores (Mohs 5.5-7) in SAG and primary ball mills.

Total Cost of Ownership (TCO) Analysis

Initial purchase price represents only 15-30% of total grinding media cost. Comprehensive TCO includes all cost drivers.

TCO Model Assumptions

Operational Parameters:

• Daily ore processing: 5,000 tons

• Ball mill total charge: 80 tons

• Mill utilization: 90% (330 days/year)

• Ore type: Medium-hard sulfide ore (Mohs 6-6.5)

Pricing (estimated 2024-2025 market trends):

• Forged ball price: $1,350-1,600/ton

• Cast ball price: $950-1,150/ton

• Electricity: $0.08/kWh

• Ore value: $6/ton processed

• Screen replacement: $8,000/unit

Wear & Breakage (site verification required):

• Cast balls: 950 g/t wear + 18% annual breakage

• Forged balls: 550 g/t wear + 5% annual breakage

Labor & Downtime:

• Ball replacement shutdown: 10 hours (500 tons production lost)

Direct Cost Components

Forged Steel Grinding Balls Annual:

• Wear consumption: (1.5M tons × 0.55 kg/ton) = 825 kg/ton = ~137 tons

• Breakage replacement: ~6 tons

• Total consumption: ~143 tons

• Media cost: 143 × $1,475 = ~$211,000

Cast Steel Grinding Balls Annual:

• Wear consumption: (1.5M tons × 0.95 kg/ton) = ~237 tons

• Breakage replacement: ~36 tons

• Total consumption: ~273 tons

• Media cost: 273 × $1,050 = ~$287,000

Indirect Cost Components

Downtime Production Losses:

• Cast operations (8 shutdowns): 40,000 tons lost × $6 = ~$240,000

• Forged operations (3 shutdowns): 15,000 tons lost × $6 = ~$90,000

Screening & Maintenance:

• Cast balls: Screen replacement every 3 months = ~$32,000

• Forged balls: Screen life to 9 months = ~$11,000

Energy Differential:

• Potential 3-6% efficiency improvement with forged balls

• For 1.5 MW mill × 7,920 hours = savings of ~$43,000

Five-Year TCO Comparison

Cast Steel Balls (5 years):

• Media: $1,435,000

• Downtime: $1,200,000

• Screens: $160,000

• Total: ~$2,795,000

Forged Steel Balls (5 years):

• Media: $1,055,000

• Downtime: $450,000

• Screens: $55,000

• Energy savings: -$215,000

• Total: ~$1,345,000

Net TCO advantage: ~$1,450,000 over 5 years (52% reduction)

Critical disclaimer: These are modeling examples. Actual costs vary significantly by ore characteristics, mill configuration, labor rates, and local conditions. Conduct site-specific trials before decisions. Contact Changzhou Eurasian technical team for customized TCO models.

Application-Specific Selection Guidelines

Ore Hardness Matching

Soft to Medium Ores (Mohs 2.5-4.5):

• Examples: Gold ore, copper oxide, limestone

• Recommended hardness: HRC 55-58

• Ball type: Forged low-alloy or medium chrome (Cr 3-5%)

• Cast ball viability: Acceptable for secondary grinding where impact is low

Medium to Hard Ores (Mohs 5-6.5):

• Examples: Iron ore, copper sulfide, zinc ore

• Recommended hardness: HRC 58-62

• Ball type: Forged medium to high-chrome (Cr 8-12%)

• Cast considerations: Premium heat-treated cast may work in ball mills but underperform in SAG

Very Hard Ores (Mohs 7+):

• Examples: Magnetite, chrome ore, taconite

• Recommended hardness: HRC 60-65

• Ball type: Forged ultra-high chrome (Cr 15-18%)

• Cast limitations: Not recommended for primary grinding due to breakage risk

Mill Type Considerations

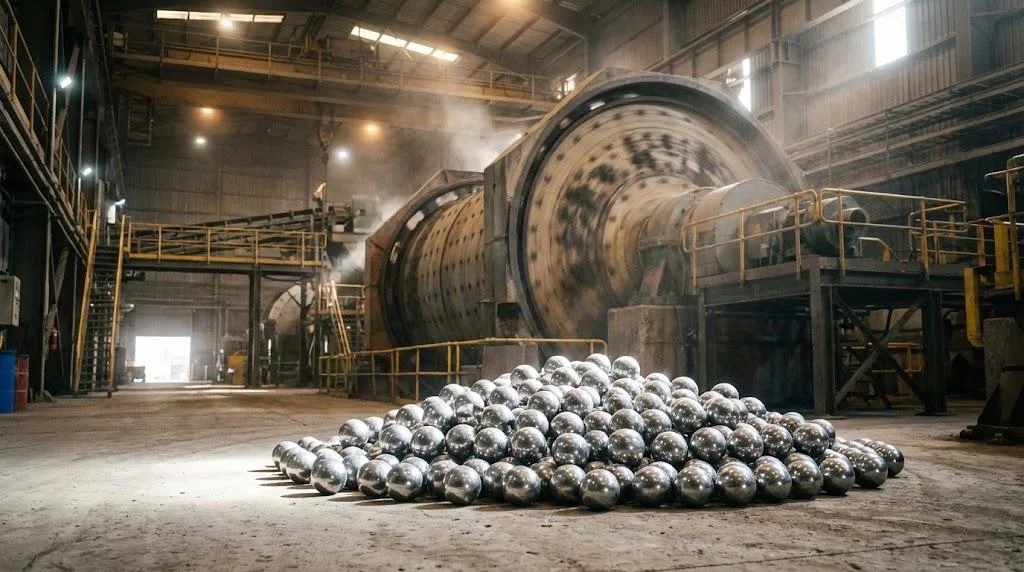

SAG Mills:

• Highest impact severity

• Strong forged preference: 40-60% lower breakage vs cast

• Ball size: 100-125mm

• Lifespan: 8-14 months

• Cast use: Limited to softer ores with cost constraints

Primary Ball Mills:

• Moderate impact

• Forged recommended for optimal TCO

• Ball size: 40-80mm

• Cast viability: Premium cast acceptable for pre-crushed feed with lower impact

Secondary/Regrind Mills:

• Lower impact intensity

• Cast may be suitable for budget operations

• Ball size: 20-40mm

• One scenario where cast can deliver acceptable performance-to-cost ratios

Quality Verification Methods

Metallurgical Testing

Cross-section hardness mapping:

• Request traverses with minimum 5 measurement points

• Genuine forged: ≤5 HRC variation across section

• Conventional cast: 10-20 HRC drop surface to core

• Testing spec: ASTM E18 Rockwell standard

Microstructure examination:

• Forged: Fine, uniform pearlite/bainite (200-500× magnification)

• Cast: Coarser dendrites, porosity, segregation zones

• Request metallographic reports with photomicrographs at 100×, 200×, 500×

At Changzhou Eurasian, our spectrometer verifies alloy chemistry within ±0.05% tolerance, while our metallurgical lab provides grain size analysis—the same rigorous testing we apply to precision steel balls for automotive safety systems.

Supplier Qualification Checklist

Demand comprehensive documentation:

• Heat treatment charts showing quench and temper curves

• Batch traceability linking balls to production dates and test reports

• ISO 9001 or IATF 16949: Our IATF 16949:2016 demonstrates automotive-grade quality systems

• Third-party test reports from Bureau Veritas, SGS, Intertek

• Field performance data from reference sites

Avoid suppliers unwilling to provide cut-ball samples or cross-sectional hardness data.

FAQ Section

Why do cast steel balls have higher breakage rates?

Cast balls experience elevated breakage primarily due to internal structural discontinuities from solidification. Surface layers (HRC 58-62) cool faster than cores (HRC 40-48), creating thermal stresses and hardness gradients. Under repetitive high-impact conditions, stress concentrations at hardness interfaces can cause crack initiation and propagation. Forged balls with uniform through-hardness (3-5 HRC variation) distribute stresses more evenly. Request cross-sectional hardness traverse data (minimum 5 points) to verify actual uniformity.

Can forged grinding balls reduce energy consumption?

Forged balls can contribute to modest 3-6% energy reductions, secondary to wear/breakage benefits. Mechanisms include: maintained charge effectiveness (slower wear keeps optimal mill mass), elimination of non-productive grinding from broken fragments, and optimized ball size distribution. Energy improvements are highly variable by mill parameters. Conduct baseline power monitoring before/after ball changes to quantify site-specific effects. Consider energy savings as supplementary benefit rather than primary justification.

How can I verify genuine forged balls vs misrepresented cast balls?

Three-tier protocol:

1. Documentation: ISO 9001/IATF 16949 certification, heat treatment temperature-time curves, third-party audit reports

2. Physical testing: Cross-sectional hardness traverse (forged ≤5 HRC variation vs cast 10-20 HRC drop), visual cut surface inspection, magnetic particle testing

3. Metallographic analysis: Microstructure at 100-500× magnification showing fine uniform structure vs coarse dendrites

Red flags: Unwillingness to provide cut samples, missing heat treatment data, no third-party certs, pricing significantly below market. For critical applications, invest $500-1,000 in independent testing before large purchases.

What is optimal ball hardness for different ore types?

Soft-medium ores (Mohs 2.5-4.5): HRC 55-58Medium-hard ores (Mohs 5-6.5): HRC 58-62Very hard ores (Mohs 7+): HRC 60-65

Too-soft balls accelerate wear 40-60% in severe mismatch; excessively hard balls become brittle under high impact. Start with industry standards, then conduct 3-6 month trials measuring wear rates and breakage to optimize for specific conditions.

How does ball size selection affect efficiency?

Larger balls (80-125mm): High impact energy for primary grinding but less surface area per tonMedium balls (40-70mm): Balance impact and surface for secondary grindingSmaller balls (20-40mm): Maximum surface contact for fine grinding but insufficient impact for coarse reduction

Use graded charges with 3-4 size increments matching feed particle distribution. Replace 20-30% of smallest balls every 3-4 months. Conduct monthly particle size analysis to verify performance.

Are forged balls suitable for dry and wet grinding?

Yes, both applications. Wet grinding (85% of mining): uniform hardness prevents accelerated corrosion, superior impact resistance withstands slurry hydraulics, minimal breakage reduces flotation contamination. Dry grinding (cement, coal): consistent grinding without fracture-induced variation, reduced dust from broken fragments, extended liner life. For corrosive wet environments, consider our 316 stainless steel balls  with GMPC certification.

Contact Changzhou Eurasian for Technical Support

Optimize your grinding media strategy with expert guidance:

• Customized TCO modeling for your ore type and mill configuration

• Ball hardness selection consultation based on Mohs hardness and impact conditions

• Trial program design with KPI tracking templates

• Quality verification support including third-party testing coordination

Changzhou Eurasian Steel Ball Co., Ltd.

• IATF 16949:2016 certified automotive quality systems

• GMPC (US FDA + ISO 22716) certified for chemical applications

• Bureau Veritas factory audited

• CQI-9 certified heat treatment line

• Advanced quality lab: spectrometer, Rockwell hardness tester, roundness meter, vibration analyzer

While our specialization is precision balls for bearings and valves  our metallurgical expertise and quality infrastructure enable us to provide authoritative technical guidance on grinding media selection.

Contact us today to discuss your grinding ball requirements and receive customized recommendations based on your specific operational parameters.
